WTC 2000 Precision Balance

Radwag Balances and Scales - Advanced Weighing Technologies
Selected language English
WTC 2000 Precision Balance in Laboratory Balances
This image is for reference only.
WTC 2000 Precision Balance
Product code: WL-210-0001
Select model (4)
done
Max: 2000gd: 0,01g

 128×128mm
expand_more
Max: 200gd: 0,001g

 ø100mm
Max: 600gd: 0,01g

 128×128mm
Max: 3100gd: 0,1g

 128×128mm
Overview
WTC precision balances enable fast and accurate determination of mass in laboratory. The devices are equipped with an internal battery which allows their operation in places where there is no... More ››
Maximum capacity [Max]: 2000g
Readability [d]: 0.01g

close
Select model:
WTC 200 Precision Balance
WTC 600 Precision Balance
WTC 2000 Precision Balance
WTC 3000 Precision Balance
Select all
View
Download
Request a Quote
Overview
WTC precision balances enable fast and accurate determination of mass in laboratory. The devices are equipped with an internal battery which allows their operation in places where there is no access to the mains.

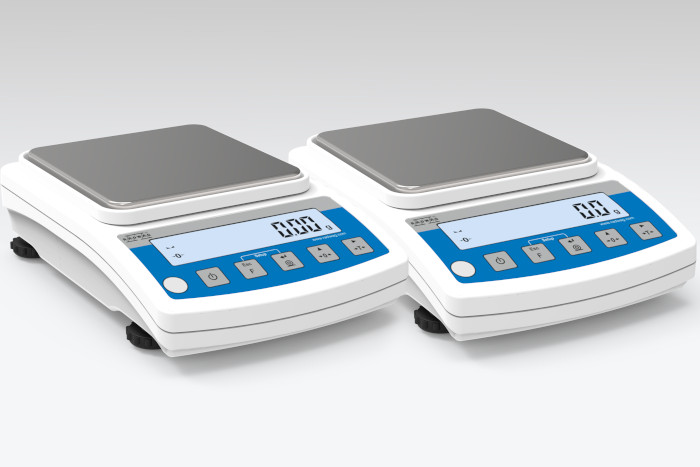

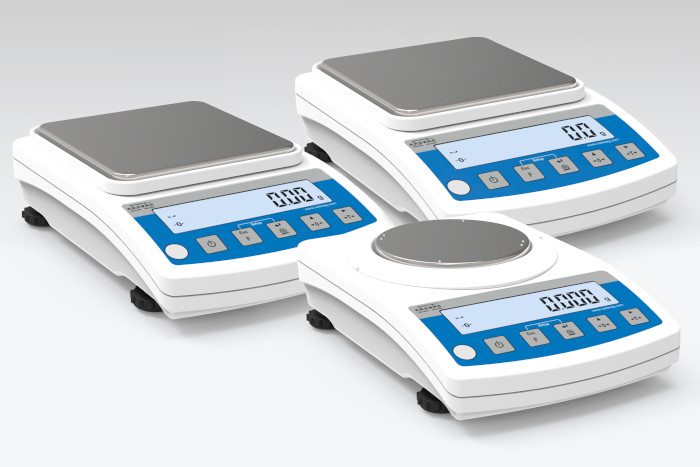

The balance features a stainless steel weighing pan, and a backlit LCD guaranteeing clear weighing result presentation.

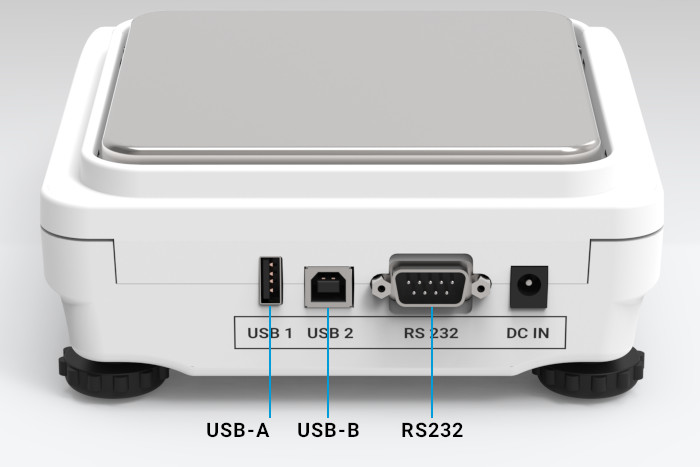

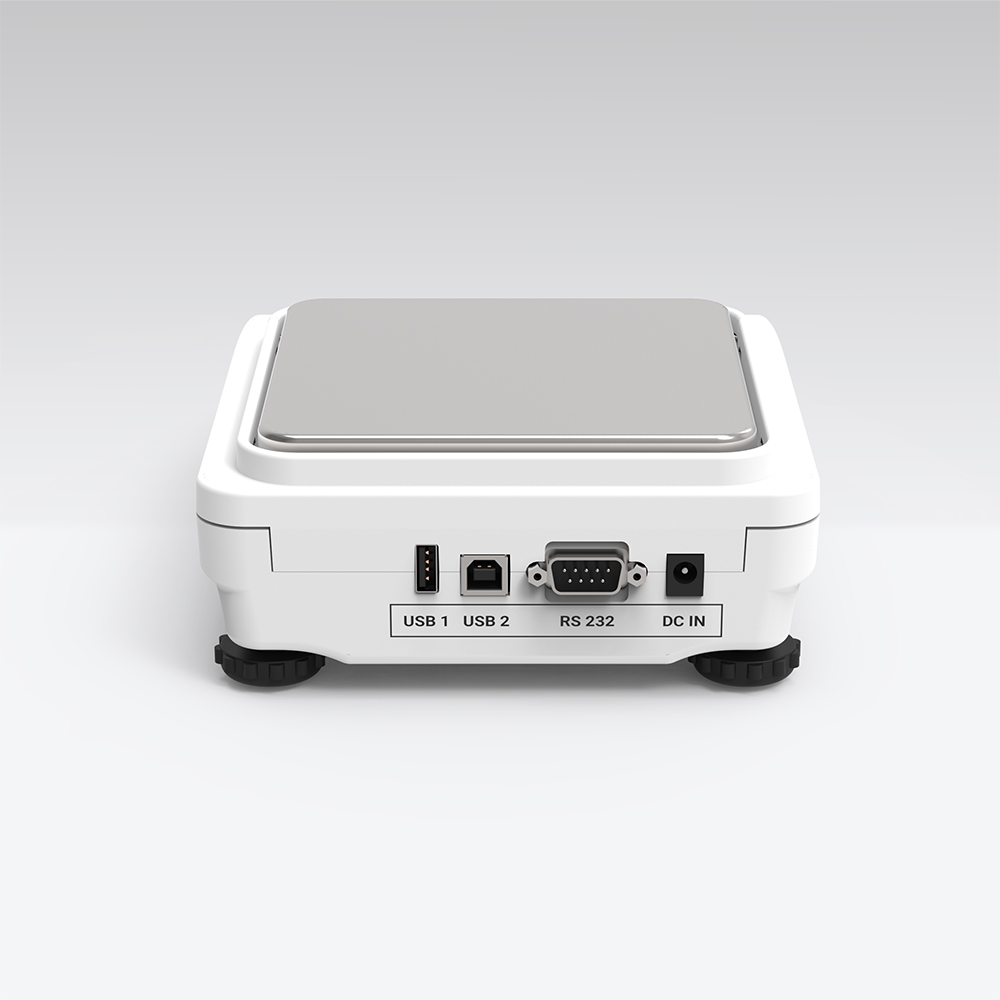

Communication interfaces: RS232, USB type A, USB type B. The interfaces enable cooperation with peripheral devices, e.g. printer, computer, USB flash drive. The WTC balances feature real-time clock and ALIBI memory.

Datasheet
Maximum capacity [Max]

2000

 g

Readability [d]

0.01

 g

Tare range

-2000

 g

Repeatability

0.01

 g

Linearity

±0.03

 g

Stabilization time

2

 s

Adjustment

external



Levelling system

manual



Display

LCD (backlit)



Weighing pan dimensions

128×128

 mm

Packaging dimensions

330×220×140

 mm

Net weight

1.3

 kg

Gross weight

2

 kg

Protection class

IP 43



Communication interface

2×RS232, USB-A, USB-B



Power supply

100 — 240 V AC 50 / 60 Hz and battery



Power consumption max.

6 W



Operation time on batteries

15 h (average time)



Operating temperature

+15 — +30

 °C

Repeatability is expressed as a standard deviation from 10 cycles of mass standard weighing.
Stabilization time depends on the ambient conditions and the dynamics of weighing pan loading; specified for FAST profile.
360°

Functions
Plus/Minus Control

Plus/Minus Control

Control of sample's mass carried out with reference to specified MIN and MAX thresholds. The weight is considered to be correct if it is comprised within threshold values. A graphic visualisation of weighing result is displayed in a form of a bar graph.
Percent Weighing

Percent Weighing

Percent Weighing function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly  exceeded.
Parts counting

Parts counting

Function using mass measurement for determination of  measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.
Peak hold

Peak hold

Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
GLP Procedures

GLP Procedures

Diagnostic function allowing to objectively document performed measurements. GLP procedures may be either presented in a short report form or extended one.
ALIBI Memory

ALIBI Memory

"ALIBI" memory enables saving and storing up to 100000 measurements.  Measurements are saved automatically upon each pressing of the key. There is no need for any additional operations or changing settings.
The following data related with the measurements is saved: measurement date; measurement time; result (mass); tare value; operator carrying out the measurement (logged in); product name.
The software saves the measurement in a so called loop, i.e. when the measurement no. 100001 is saved, the measurement 1 gets automatically deleted from the memory.
Measurements saved to balance memory cannot be deleted.
You can preview and print out the data saved to the ALIBI database.
