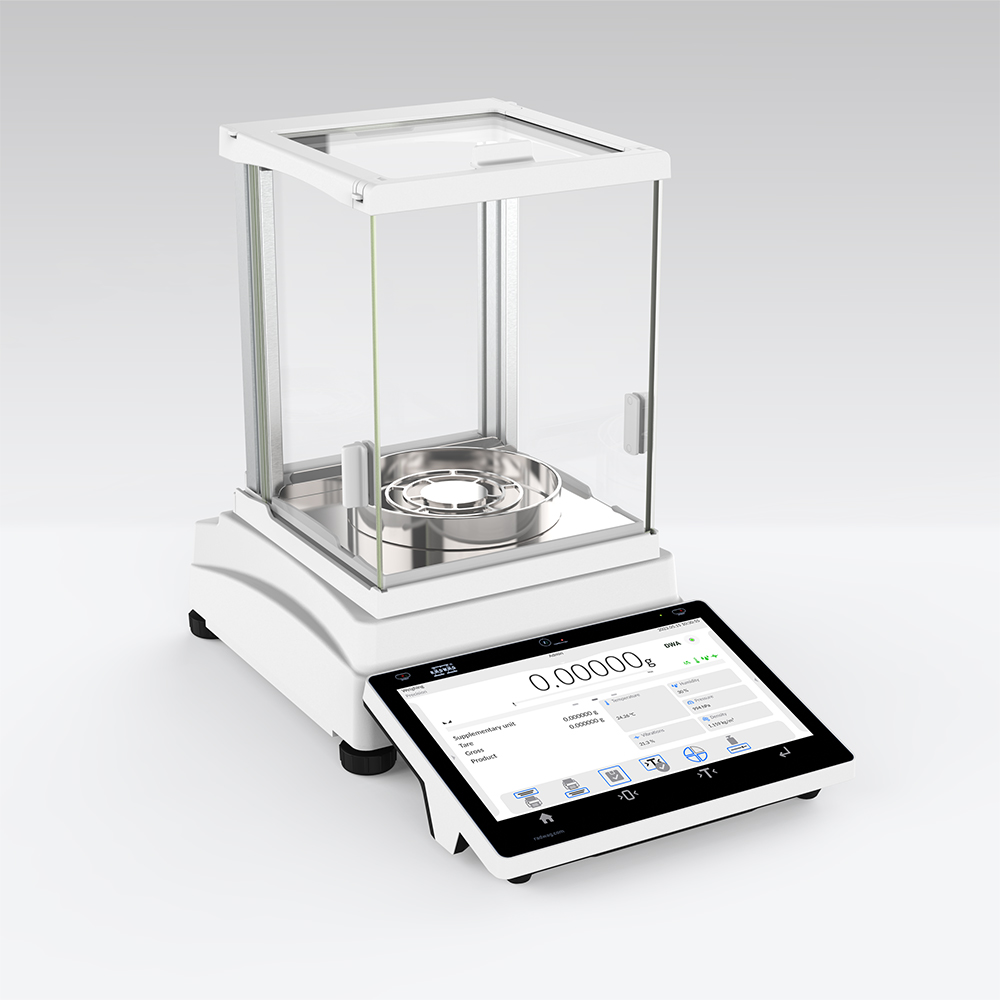

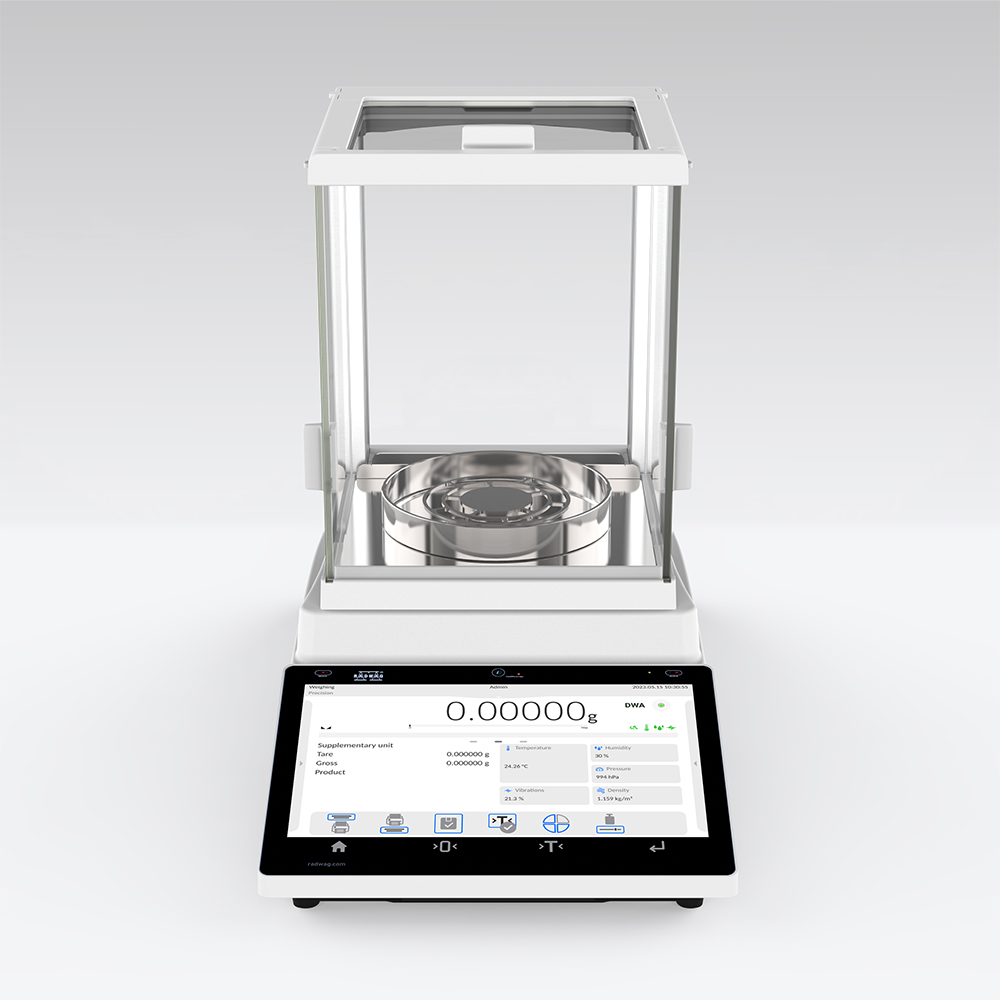

AS 60/220.5Y Analytical Balance

A very good repeatability, high readability and high resolution are the main features of AS 5Y Analytical Balances. These measuring devices are intended for weighing small masses (up to 3100 g) and, as a type of laboratory balance, are widely used in pharmaceutical, physical, chemical, biological, medical and other laboratories.

What Strengths Do the AS 5Y Analytical Balances Have?

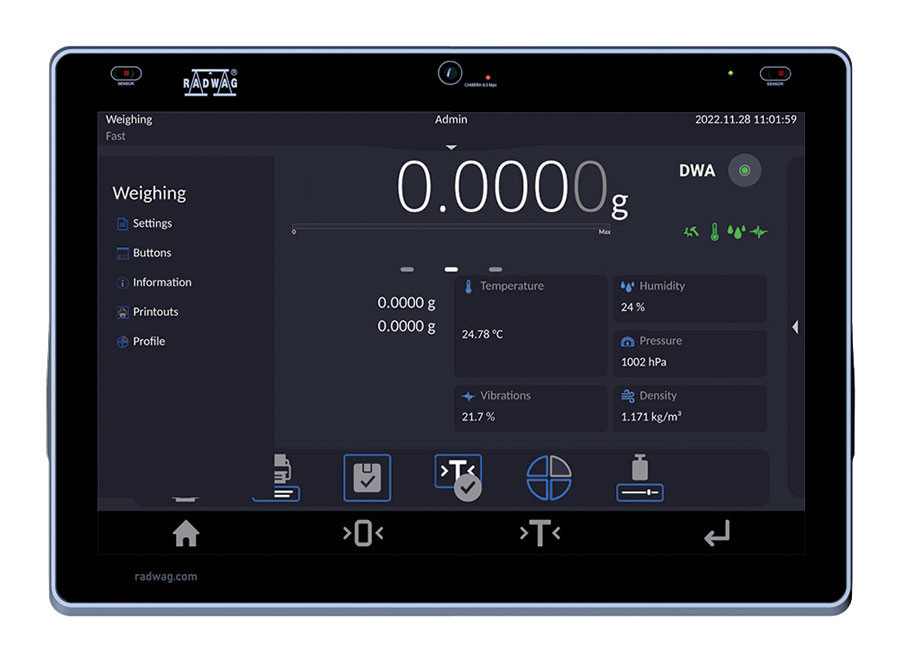

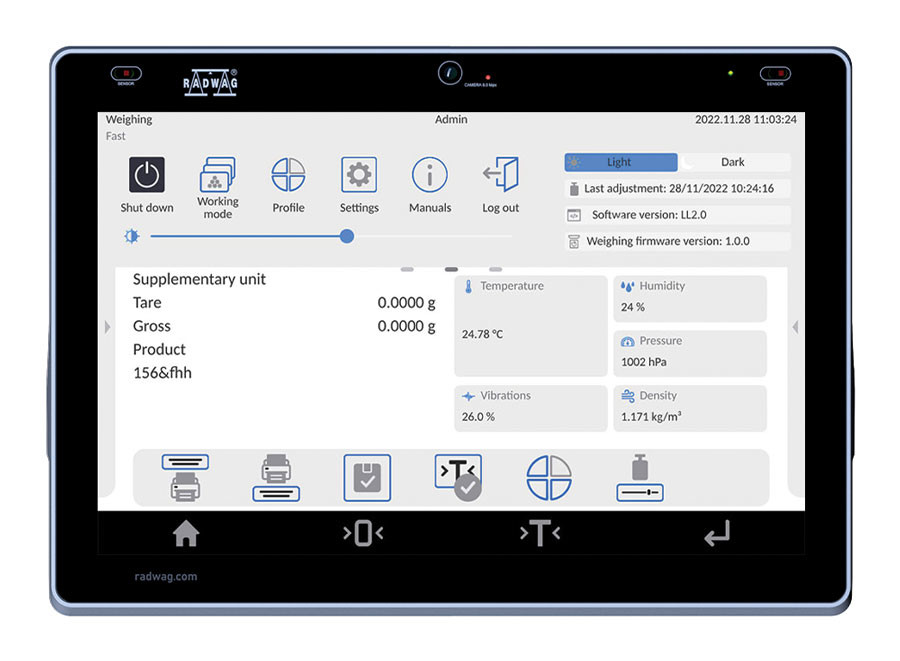

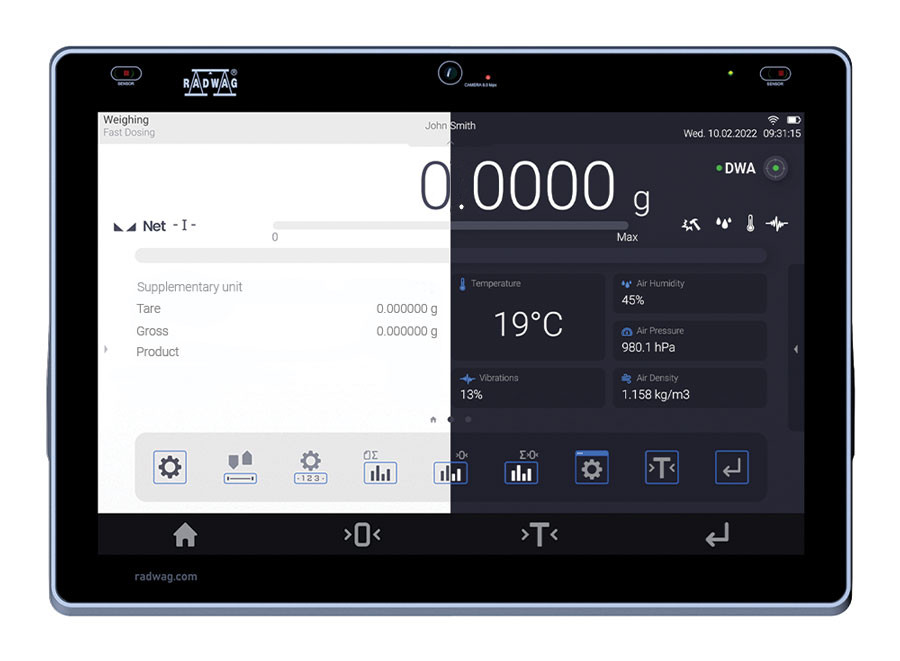

10-Inch Display

AS 5Y Analytical Balances have a comfortable 10-inch touchscreen display. A large display means more information at the same time. In addition, this series balances are equipped with a number of communication interfaces: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer. Hotspot allows remote operation of the balance in case of lack of access to the terminal or fume cupboard, as well as in other challenging situations.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Digital Weighing Auditor

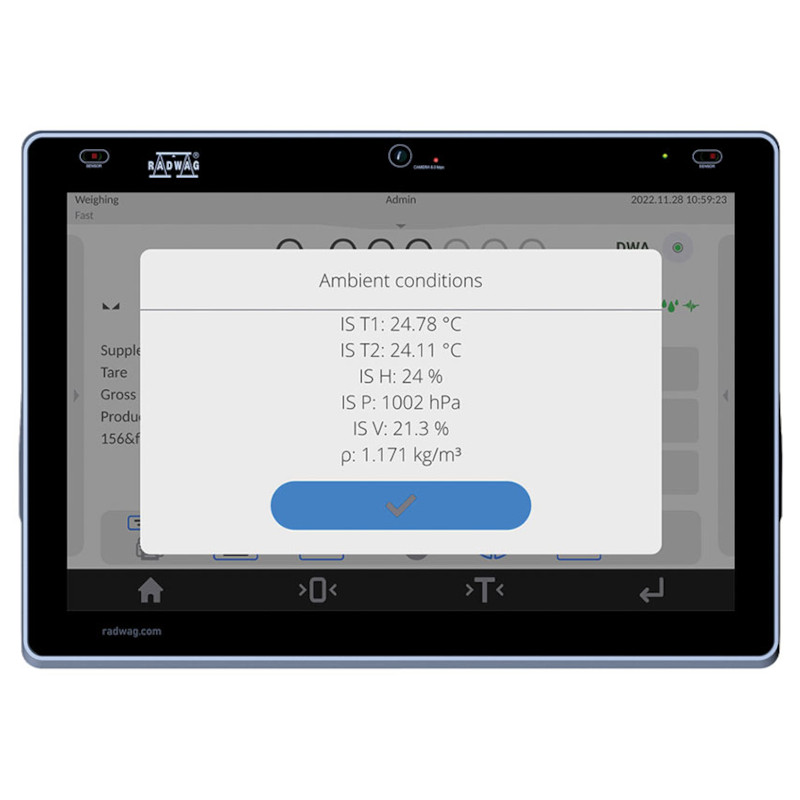

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

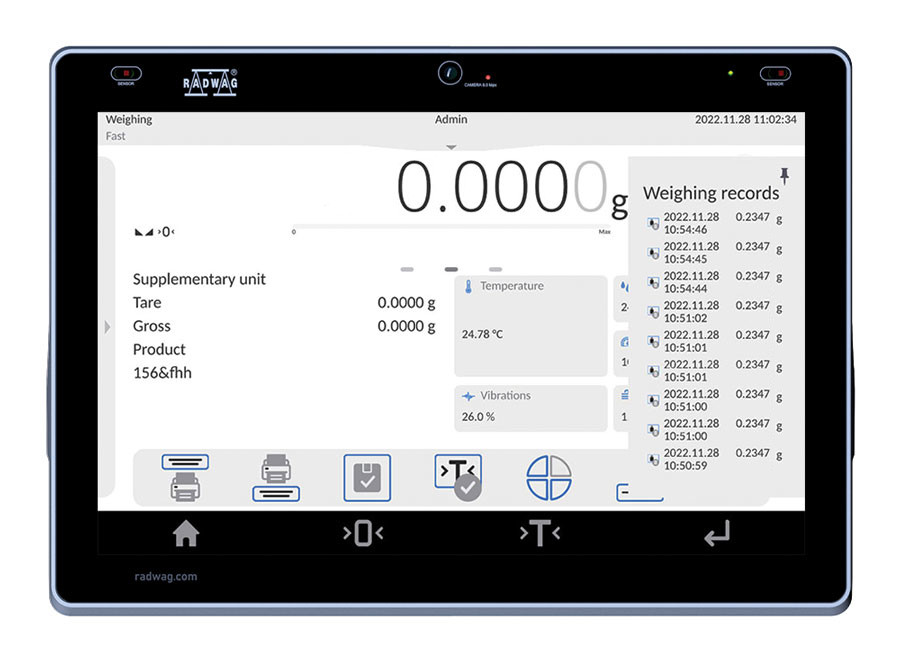

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

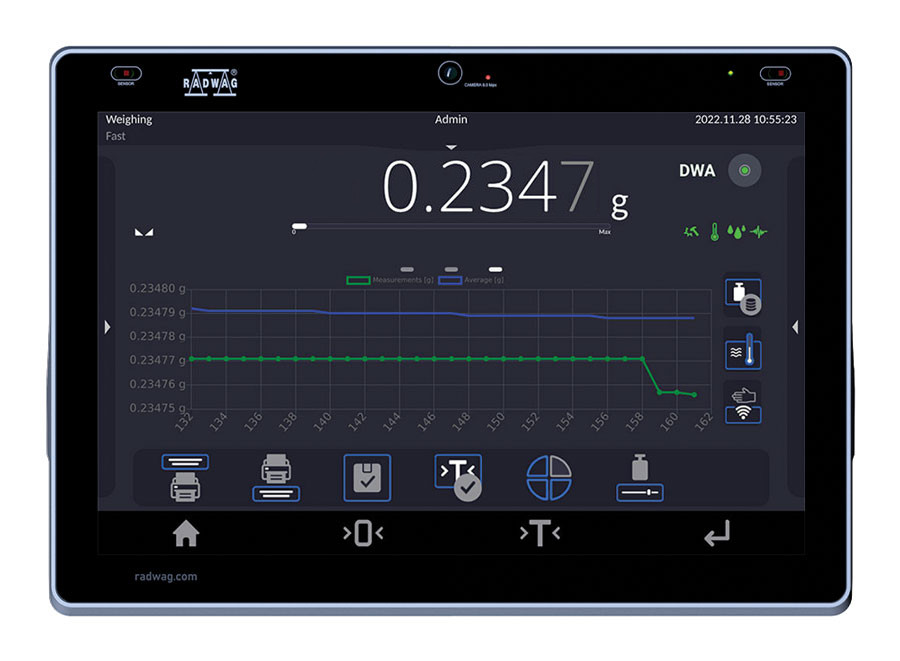

Widgets

Prepared to display what you need most at any given moment.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

LevelSENSING System

The AS 5Y Analytical Balances use a semi-automatic levelling system. Semi-automatic levelling, the so-called LevelSENSING System, works perfectly with the user, as it displays graphical information so that the user can see which way the balance should be levelled. This solution saves time and simplifies the procedure.

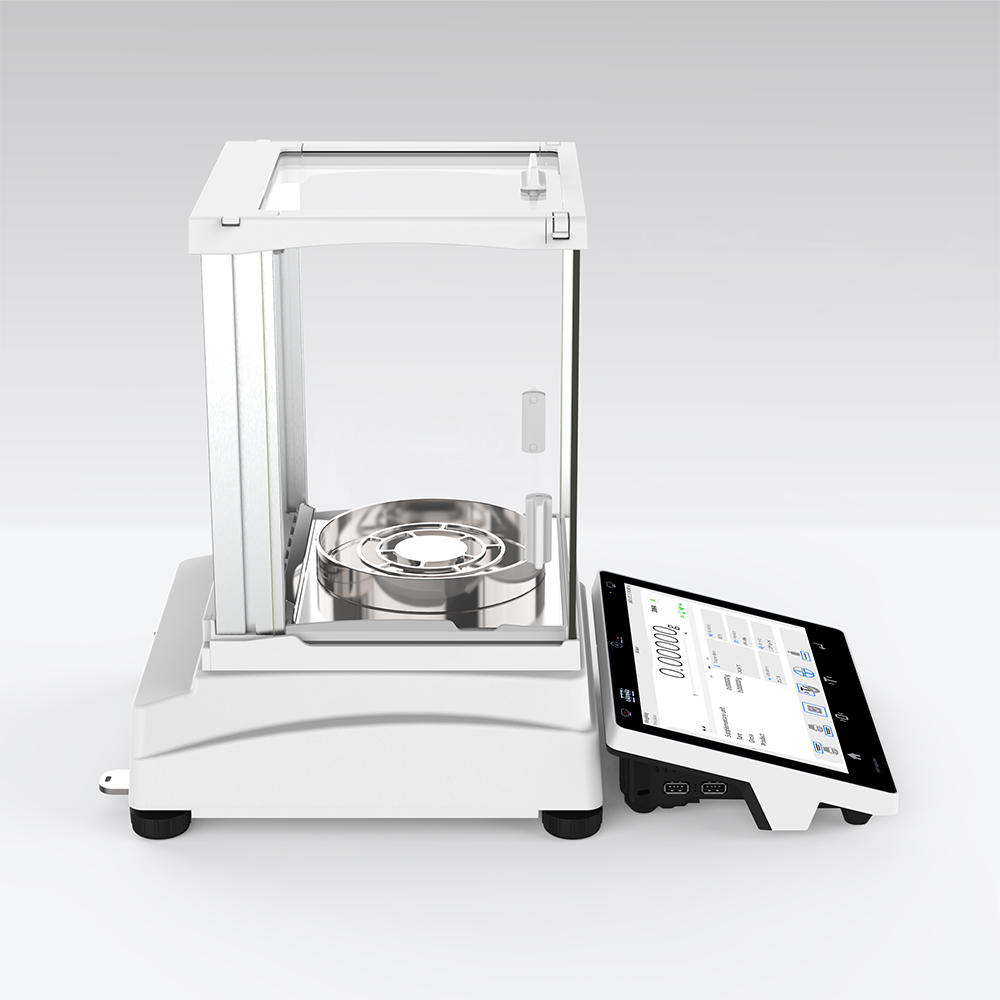

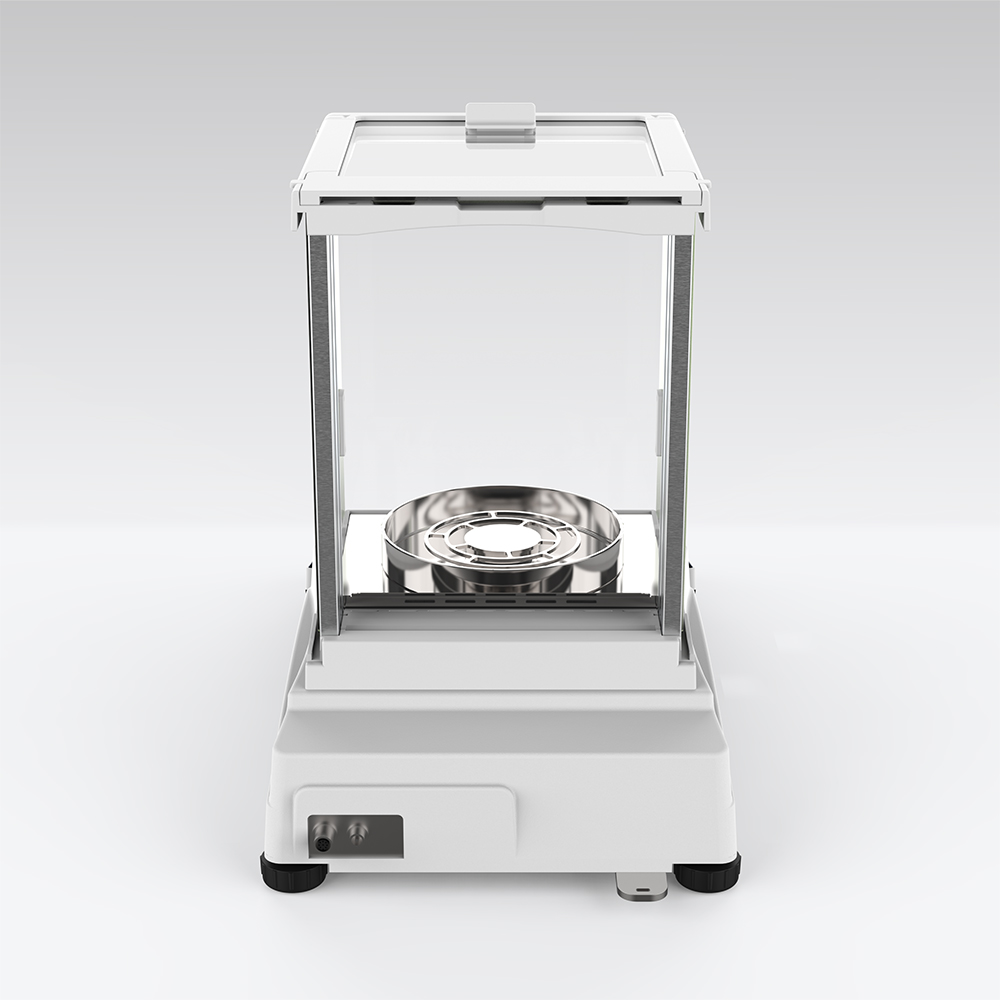

Manually opened weighing chamber

The AS 5Y Analytical Balances have a manually opened weighing chamber that can be disassembled without tools. The manually opened weighing chamber provides easy access to samples and facilitates handling. In addition, it allows you to adjust the work rate to the user and his/ her specific needs, as well as to the conditions in the laboratory. Tool-free disassembly of the chamber is a very ergonomic solution that does not require the user to have his own installation components.

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products:
Stainless Steel in RADWAG products. Standard and special applications

Wi-Fi^® is a registered trademark of Wi-Fi Alliance^®.

Check the price in our store

radwaguk.com

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebook – profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

See in store (UK) Radwag Shop

Maximum capacity [Max]	60 / 220 g
Minimum load	1 mg
Readability [d]	0.01 / 0.1 mg
Verification unit [e]	1 mg
Tare range	-220 g
Standard repeatability [5% Max]	0.01 mg
Standard repeatability [Max]	0.06 mg
Standard minimum weight (USP)	20 mg
Standard minimum weight (U=1%, k=2)	2 mg
Permissible repeatability [5% Max]	0.02 mg
Permissible repeatability [Max]	0.1 mg
Linearity	±0.05 / 0.2 mg
Stabilization time	2 s
Adjustment	internal (automatic)
OIML Class	I
Leveling system	semi-automatic – LevelSENSING
Display	10″ graphic colour touchscreen
Weighing chamber doors	manual

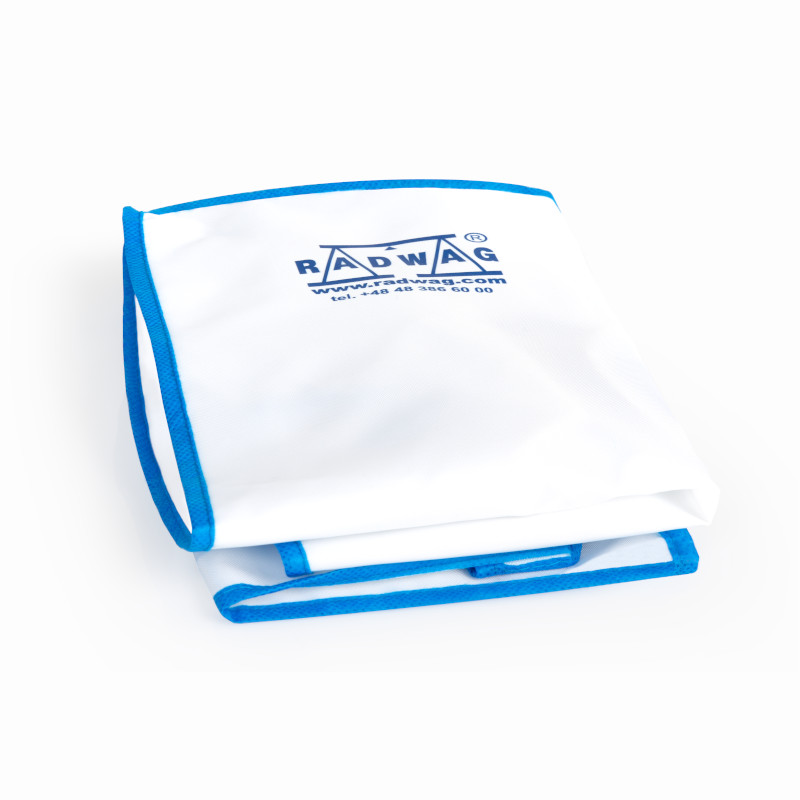

Delivery components	Balance, weighing pan, weighing pan shield, centring ring, bottom cover, power supply, fabric dust cover.
Weighing chamber dimensions	190×190×227 mm
Weighing pan dimensions	ø90 open-work pan + ø85 (option) mm
Packaging dimensions	600×400×550 mm
Net weight	7.14 kg
Gross weight	10.5 kg
Protection class	IP 43
Database capacity	7
Touch-free operation	2 IR Sensors
Communication interface	2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot
Power supply	Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.6A max; 10–19W*
Operating temperature	+10 – +40 °C
Ambient conditions monitoring (option)	THBR 2.0 System, THBR BOX, THB P, THB W, THB S
Relative humidity	40% – 80%
