AGV-8/1000 Automatic Comparator for Determination of Mass standard's Density and Volume

AGV-8/1000 Automatic Comparator for Determination of Mass standard's Density and Volume in Mass Comparators

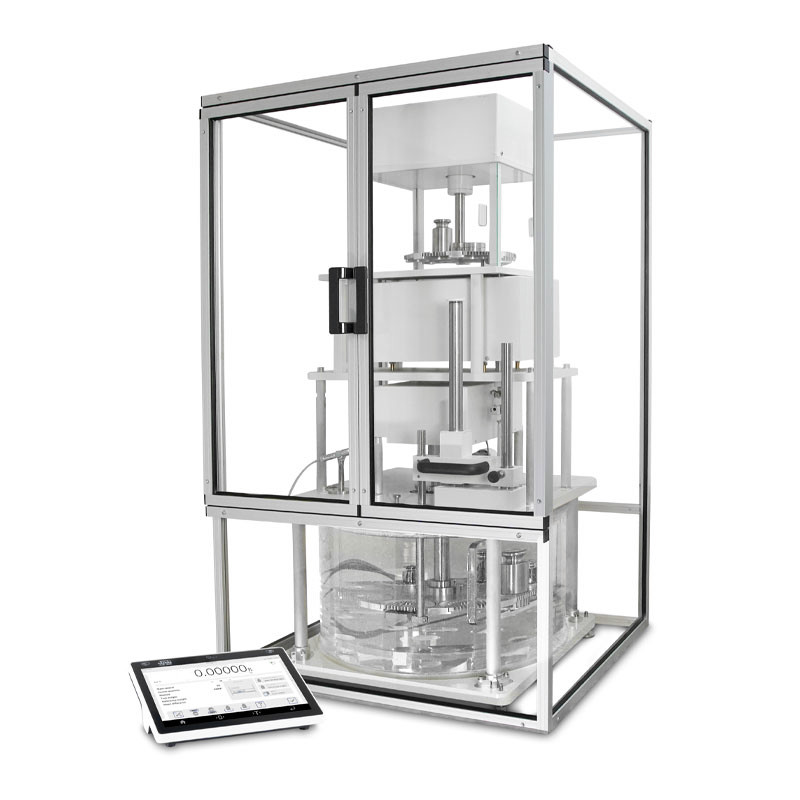

This image is for reference only.
AGV-8/1000 Automatic Comparator for Determination of Mass standard's Density and Volume
Product code: WL-418-0002
Select model (2)
doneexpand_more
Max: 26,1kgd: 1mg

 ø220 self centeringmm
Overview
The AGV-8/1000 automatic comparator determines density and volume of mass standards of class E1 and lower in accordance with OIML R111. It is characterized by the highest accuracy and measurement... More ››
Maximum capacity [Max]: 1110g
Readability [d]: 0.01mg

close
Select model:
AGV-2/20 Automatic Comparator
AGV-8/1000 Automatic Comparator for Determination of Mass standard's Density and Volume
Select all
View
Download
Request a Quote
Overview
The AGV-8/1000 automatic comparator determines density and volume of mass standards of class E1 and lower in accordance with OIML R111. It is characterized by the highest accuracy and measurement stability ranging between 1g and 1kg.

The AGV-8/1000 automatic comparator enables density determination to be carried out simultaneously for 7 mass standards using one reference weight.

The comparator features specially designed feeder to load and unload the magazine with mass standards. The device is equipped with an additional circulator eliminating air bubbles and a top-class liquid temperature sensor of 0.001 ˚C accuracy. A weighing pan suspended on wires eliminates the eccentricity and minimizes the influence of liquid surface tension.

Dedicated software enables to determine mass standards density and calculate uncertainty using A method according to OIML R111. It also allows to determine (verify) liquid density.
Datasheet
E1

1 g — 1 kg



Maximum capacity [Max]

1110

 g

Readability [d]

0.01

 mg

Standard repeatability [5% Max]

0.04

 mg

Standard repeatability [Max]

0.05

 mg

Permissible repeatability

0.08

 mg

Electric compensation range

-10 g — +110 g



Stabilization time

30

 s

Adjustment

external



Supplementary weights external

500 g, 300 g, 100 g, 100 g



Magazine positions

8



Weighing pan dimensions

ø60

 mm

Object diameters

5-94

 mm

Weighing device dimensions

690×710×1060

 mm

Controling device dimensions

206×140×70

 mm

Power supply

100 — 240 V AC 50 / 60 Hz



Operating temperature

+15 — +30

 °C

Storage temperature

-20 — +50

 °C

Operating temperature change rate

±0.5°C/12h (±0.3°C/4h)



Relative humidity

40% — 60%



Relative humidity change rate

±5%/12h (3%/4h)



Repeatability is expressed as a standard deviation determined for 6 ABBA cycles.
