H315.15.HR4.K Waterproof Scale With Stainless Steel Load Cell

Radwag – Laboratory and Industrial Weighing Solutions
Selected language English

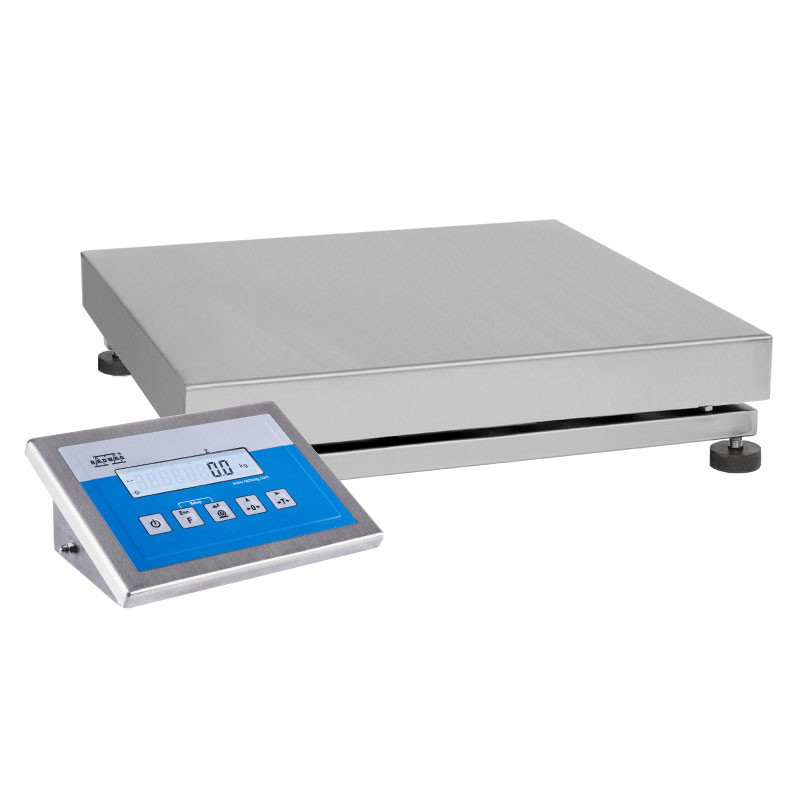

H315.15.HR4.K Waterproof Scale With Stainless Steel Load Cell
This image is for reference only.

H315.15.HR4.K Waterproof Scale With Stainless Steel Load Cell

Product code: WP-124-0078
Change the model (66)
doneexpand_more
Max: 3kgd: 1g

 250×300mm
Max: 3 / 6kgd: 1 / 2g

 250×300mm
Max: 3 / 6kgd: 1 / 2g

 410x410mm
Max: 3kgd: 1g

 250×300mm
Max: 6kgd: 2g

 250×300mm
Max: 6kgd: 2g

 410x410mm
Max: 6kgd: 2g

 410x410mm
Max: 6 / 15kgd: 2 / 5g

 250×300mm
Max: 6kgd: 2g

 250×300mm
Max: 6 / 15kgd: 2 / 5g

 250×300mm
Max: 15kgd: 5g

 250×300mm
Max: 15 / 30kgd: 5 / 10g

 250×300mm
Max: 15kgd: 5g

 410x410mm
Max: 15 / 30kgd: 5 / 10g

 250×300mm
Max: 15kgd: 5g

 400×600mm
Max: 15 / 30kgd: 5 / 10g

 410x410mm
Max: 15kgd: 5g

 250×300mm
Max: 15kgd: 5g

 400×600mm
Max: 15 / 30kgd: 5 / 10g

 410×410mm
Max: 15kgd: 5g

 410×410mm
Max: 15kgd: 5g

 500×500mm
Max: 15kgd: 5g

 600×600mm
Max: 15kgd: 5g

 600×600mm
Max: 30kgd: 10g

 250×300mm
Max: 30kgd: 10g

 400×600mm
Max: 30 / 60kgd: 10 / 20g

 400×600mm
Max: 30kgd: 10g

 250×300mm
Max: 30kgd: 10g

 400×600mm
Max: 30 / 60kgd: 10 / 20g

 400×600mm
Max: 30kgd: 10g

 410x410mm
Max: 30 / 60kgd: 10 / 20g

 500×500mm
Max: 30 / 60kgd: 10 / 20g

 500×500mm
Max: 30kgd: 10g

 500×500mm
Max: 30kgd: 10g

 600×600mm
Max: 30 / 60kgd: 10 / 20g

 600×600mm
Max: 30kgd: 10g

 410x410mm
Max: 30kgd: 10g

 500×500mm
Max: 30kgd: 10g

 600×600mm
Max: 30 / 60kgd: 10 / 20g

 600×600mm
Max: 30 / 60kgd: 10 / 20g

 410x410mm
Max: 30 / 60kgd: 10 / 20g

 410x410mm
Max: 60kgd: 20g

 500×500mm
Max: 60 / 150kgd: 20 / 50g

 410x410mm
Max: 60 / 150kgd: 20 / 50g

 410x410mm
Max: 60kgd: 20g

 600×600mm
Max: 60 / 150kgd: 20 / 50g

 400×600mm
Max: 60kgd: 20g

 410x410mm
Max: 60 / 150kgd: 20 / 50g

 400×600mm
Max: 60kgd: 20g

 400×600mm
Max: 60 / 150kgd: 20 / 50g

 500×500mm
Max: 60kgd: 20g

 500×500mm
Max: 60 / 150kgd: 20 / 50g

 500×500mm
Max: 60kgd: 20g

 410x410mm
Max: 60kgd: 20g

 400×600mm
Max: 60 / 150kgd: 20 / 50g

 600×600mm
Max: 60kgd: 20g

 600×600mm
Max: 60 / 150kgd: 20 / 50g

 600×600mm
Max: 150kgd: 50g

 600×600mm
Max: 150kgd: 50g

 500×500mm
Max: 150kgd: 50g

 600×600mm
Max: 150kgd: 50g

 410x410mm
Max: 150kgd: 50g

 400×600mm
Max: 150kgd: 50g

 500×500mm
Max: 150kgd: 50g

 410x410mm
Max: 150kgd: 50g

 400×600mm
Maximum capacity [Max]: 15 kg
Readability [d]: 5 g

close
Change the model:
H315.3.HR2.K Waterproof Scale With Stainless Steel Load Cell
H315.3/6.HR2.M Waterproof Scale With Stainless Steel Load Cell
H315.3/6.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.3.HR2.M Waterproof Scale With Stainless Steel Load Cell
H315.6.HR2.K Waterproof Scale With Stainless Steel Load Cell
H315.6.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.6.HR3.K Waterproof Scale With Stainless Steel Load Cell
H315.6/15.HR2.M Waterproof Scale With Stainless Steel Load Cell
H315.6.HR2.M Waterproof Scale With Stainless Steel Load Cell
H315.6/15.HR2.K Waterproof Scale With Stainless Steel Load Cell
H315.15.HR2.M Waterproof Scale With Stainless Steel Load Cell
H315.15/30.HR2.M Waterproof Scale With Stainless Steel Load Cell
H315.15.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.15/30.HR2.K Waterproof Scale With Stainless Steel Load Cell
H315.15.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
H315.15/30.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.15.HR2.K Waterproof Scale With Stainless Steel Load Cell
H315.15.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
H315.15/30.HR3.K Waterproof Scale With Stainless Steel Load Cell
H315.15.HR3.K Waterproof Scale With Stainless Steel Load Cell
H315.15.HR4.M Waterproof Scale With Stainless Steel Load Cell
H315.15.HR5.M Waterproof Scale With Stainless Steel Load Cell
H315.15.HR4.K Waterproof Scale With Stainless Steel Load Cell
H315.15.HR5.K Waterproof Scale With Stainless Steel Load Cell
H315.30.HR2.M Waterproof Scale With Stainless Steel Load Cell
H315.30.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
H315.30/60.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
H315.30.HR2.K Waterproof Scale With Stainless Steel Load Cell
H315.30.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
H315.30/60.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
H315.30.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.30/60.HR4.M Waterproof Scale With Stainless Steel Load Cell
H315.30/60.HR4.K Waterproof Scale With Stainless Steel Load Cell
H315.30.HR4.M Waterproof Scale With Stainless Steel Load Cell
H315.30.HR5.M Waterproof Scale With Stainless Steel Load Cell
H315.30/60.HR5.M Waterproof Scale With Stainless Steel Load Cell
H315.30.HR3.K Waterproof Scale With Stainless Steel Load Cell
H315.30.HR4.K Waterproof Scale With Stainless Steel Load Cell
H315.30.HR5.K Waterproof Scale With Stainless Steel Load Cell
H315.30/60.HR5.K Waterproof Scale With Stainless Steel Load Cell
H315.30/60.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.30/60.HR3.K Waterproof Scale With Stainless Steel Load Cell
H315.60.HR4.K Waterproof Scale With Stainless Steel Load Cell
H315.60/150.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.60/150.HR3.K Waterproof Scale With Stainless Steel Load Cell
H315.60.HR5.K Waterproof Scale With Stainless Steel Load Cell
H315.60/150.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
H315.60.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.60/150.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
H315.60.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
H315.60/150.HR4.M Waterproof Scale With Stainless Steel Load Cell
H315.60.HR4.M Waterproof Scale With Stainless Steel Load Cell
H315.60/150.HR4.K Waterproof Scale With Stainless Steel Load Cell
H315.60.HR3.K Waterproof Scale With Stainless Steel Load Cell
H315.60.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
H315.60/150.HR5.M Waterproof Scale With Stainless Steel Load Cell
H315.60.HR5.M Waterproof Scale With Stainless Steel Load Cell
H315.60/150.HR5.K Waterproof Scale With Stainless Steel Load Cell
H315.150.HR5.M Waterproof Scale With Stainless Steel Load Cell
H315.150.HR4.K Waterproof Scale With Stainless Steel Load Cell
H315.150.HR5.K Waterproof Scale With Stainless Steel Load Cell
H315.150.HR3.M Waterproof Scale With Stainless Steel Load Cell
H315.150.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
H315.150.HR4.M Waterproof Scale With Stainless Steel Load Cell
H315.150.HR3.K Waterproof Scale With Stainless Steel Load Cell
H315.150.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
Select all
Show me
Download
Add to compare Advanced search
Overview


H315.15.HR4.K Waterproof Scale With Stainless Steel Load Cell


Waterproof platform scales H315/HR series is designed for operation in locations with high humidity or direct contact with water. It can also be used in locations without access to mains power, as it can optionally be fitted with an internal battery.





Design

Single load cell stainless steel platform scales H315 HR series is based on a terminal PUE H315 series. The terminal features large backlit LCD display and function buttons for easy operation. The terminal is installed on a pillar for easy readout of measurement result. Optionally, the scales is offered with indicator installed on a cable for mounting it on a wall.

The weighing platform structure is made of stainless steel class AISI 316 with a stainless steel load cell providing the highest IP rating of 68.

The scales features RS 232 interface, and optionally an additional display socket. The scales is powered from mains or internal rechargeable accumulator.

Optionally, the scales can be powered from mains - 110 — 120VAC 60Hz (non-standard factory option).







Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products:
Stainless Steel in RADWAG products. Standard and special applications

Check the price in our store

radwaguk.com

Buying from the producer is all about the pros


✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebook – profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Datasheet
Maximum capacity [Max]

15

 kg

Minimum load

100

 g

Readability [d]

5

 g

Verification unit [e]

5

 g

Tare range

-15

 kg

Max readability for non-verified scale

0.5

 g

OIML Class

III



Display

LCD (backlit)



Cable length

2.5

 m

Weighing pan dimensions

500×500

 mm

Packaging dimensions

610×610×330

 mm

Net weight

23.5

 kg

Gross weight

25.8

 kg

Protection class

IP 68 construction, IP 68 cell, IP 68 (1h max)/69 terminal



Construction

Stainless steel AISI316



Communication interface

RS232, USB



Optional interfaces

RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA



Power supply

100 – 240 V AC 50/60 Hz



Optional power supply

internal rechargeable battery



Operation time on batteries

max 7h



Operating temperature

-10 – +40

 °C

Storage temperature

-25 – +70

 °C

Relative humidity

10% – 85% RH no condensation



2 years warranty
Verification Extra payment
for verification
CE
Videos
PUE H315 – Robust Weighing Terminal For the Toughest Industrial Applications
Complete Solutions for Mass Measurement in Pharma Industry
Functions
Plus/Minus Control

Plus/Minus Control

Control of sample's mass carried out with reference to specified MIN and MAX thresholds. The weight is considered to be correct if it is comprised within threshold values. A graphic visualisation of weighing result is displayed in a form of a bar graph.
Percent Weighing

Percent Weighing

Percent Weighing function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly  exceeded.
Totalizing

Totalizing

Function adding new mass value to already obtained one. This allows to determine mass content of the mixture, being a composition of number of different consistence components. Totalizing is limited by maximum capacity parameter.
Parts counting

Parts counting

Function using mass measurement for determination of  measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.
Internal battery

Internal battery

Internal and rechargeable battery of SLA 6 V type (sealed lead acid) enables device operation without connecting the device to the mains (9h operation). The weighing instrument controls battery status and displays a respective pictogram on the screen.
Peak hold

Peak hold

Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
Animal weighing

Animal weighing

Process of mass determination for a product which may unwillingly reposition within the weighing pan. Mass determination in such cases requires much longer period of time when compared to typical weighing process. It is the user who defines period of time needed for control of measured product mass. The user can thus optimize the function depending on the measured product characteristics.
Documentation
Datasheet
Data Sheet Data Sheet
Data Sheet

Show me
Show me
Download
Download

Choose more product:
Show me Show me DownloadDownload
User Manuals
User Manual - CBCP 01
User Manual - CBCP 01
Show me
Show me
Download
Download
(0.30 MB)
User Manual - PUE H315
User Manual - PUE H315
Show me
Show me
Download
Download
(1.40 MB)
Software Manual - PUE H315
Software Manual - PUE H315
Show me
Show me
Download
Download
(1.38 MB)
User Manual - H315 scales
User Manual - H315 scales
Show me
Show me
Download
Download
(1.34 MB)
Quick start
Quick start
Show me
Show me
Download
Download
(2.47 MB)
Quick start
Quick start
Show me
Show me
Download
Download
(1.63 MB)
Conformity Declarations
Conformity Declarations
Conformity Declarations
Show me
Show me
Download
Download
(0.04 MB)
Publications and Brochures
Laboratory balance cleaning
Laboratory balance cleaning
Show me
Show me
Download
Download
(2.52 MB)
Stainless Steel in RADWAG products. Standard and special applications
Stainless Steel in RADWAG products. Standard and special applications
Show me
Show me
Download
Download
(2.23 MB)
Radwag Balances and Scales
Torunska 5
26-600 Radom
Poland
tel.: +48 48 386 60 00
e-mail: export@radwag.com
TIN: PL7960000327
Vimeo Radwag YouTube Radwag Facebook Radwag LinkedIn Radwag
© 2024 RADWAG Balances and Scales. All rights reserved.

Select language

×
Change language AlbanianAlbanian
Change language DanishDanish
Change language NederlandseNederlandse
Change language EstonianEstonian
Change language FinnishFinnish
Change language HungarianHungarian
Change language IcelandicIcelandic
Change language KazakhKazakh
Change language LatvianLatvian
Change language LithuanianLithuanian
Change language MacedonianMacedonian
Change language NorwegianNorwegian
Change language PortuguesePortuguese
Change language RomanianRomanian
Change language RussianRussian
Change language SlovakSlovak
Change language SlovenianSlovenian
Change language SwedishSwedish
Change language UkrainianUkrainian
Change language SerbianSerbian
Change language MontenegrinMontenegrin
Change language page on Deutsch Deutsch
Change language page on Español Español
Change language page on Français Français
Change language page on Italiano Italiano
Change language page on Polski Polski
Change language page on Türkiye Türkiye
Česky
Português (Brasil)
Change website to USA USA
Change language page on 中文 中文
Presentations Presentations Presentations
Subscribe Subscribe Subscribe
Radwag in Facebook Radwag in Facebook Facebook
Radwag in YouTube Radwag in YouTube Youtube
Radwag in Vimeo Radwag in Vimeo Vimeo
Radwag in LinkedIn Radwag in LinkedIn LinkedIn
Webinars Radwag Webinars Radwag Webinars
close
E-mail:
Company name:
Name:
I consent to the processing of my personal data for marketing purposes by Radwag Wagi Elektroniczne Witold Lewandowski.
I consent to receive marketing and product-related messages by electronic means from Radwag Wagi Elektroniczne Witold Lewandowski.
I have read the Privacy Policy of RADWAG Wagi Elektroniczne Witold Lewandowski.
lock_openI want to access the files
close
Slide to go back ↩
