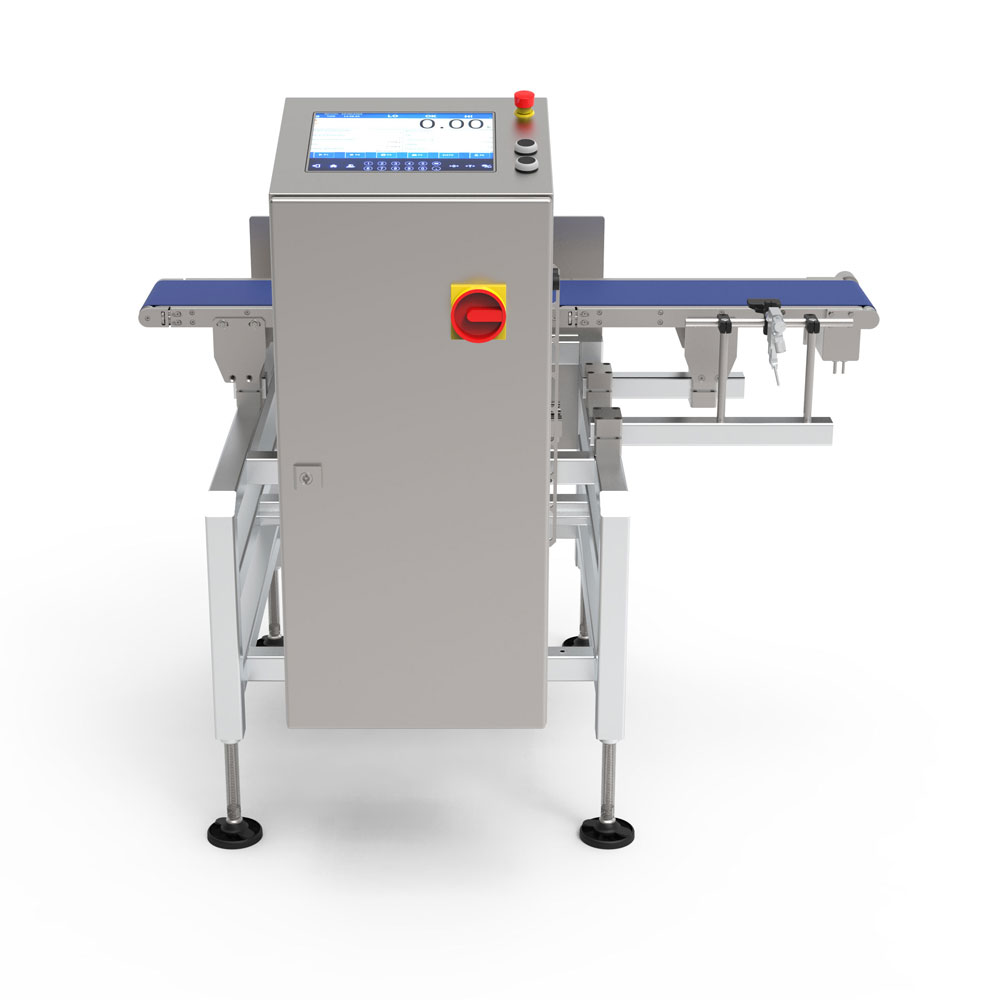

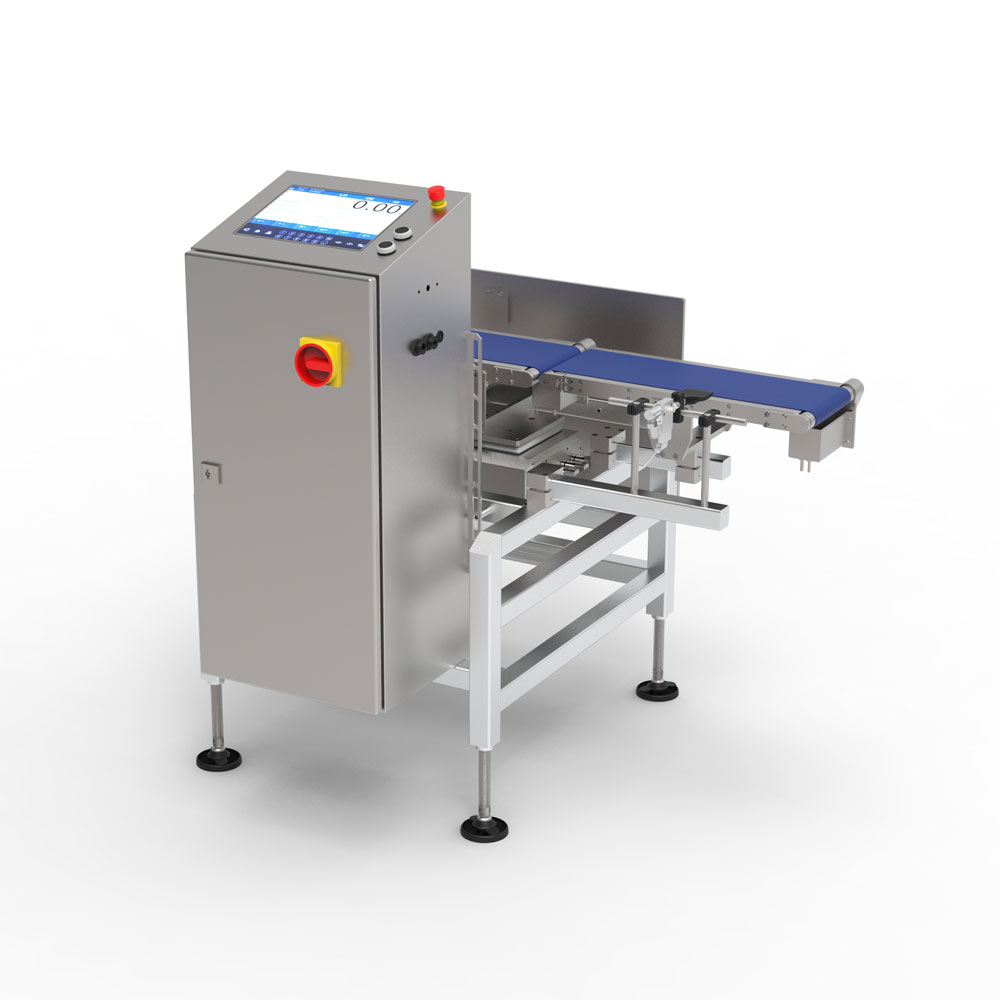

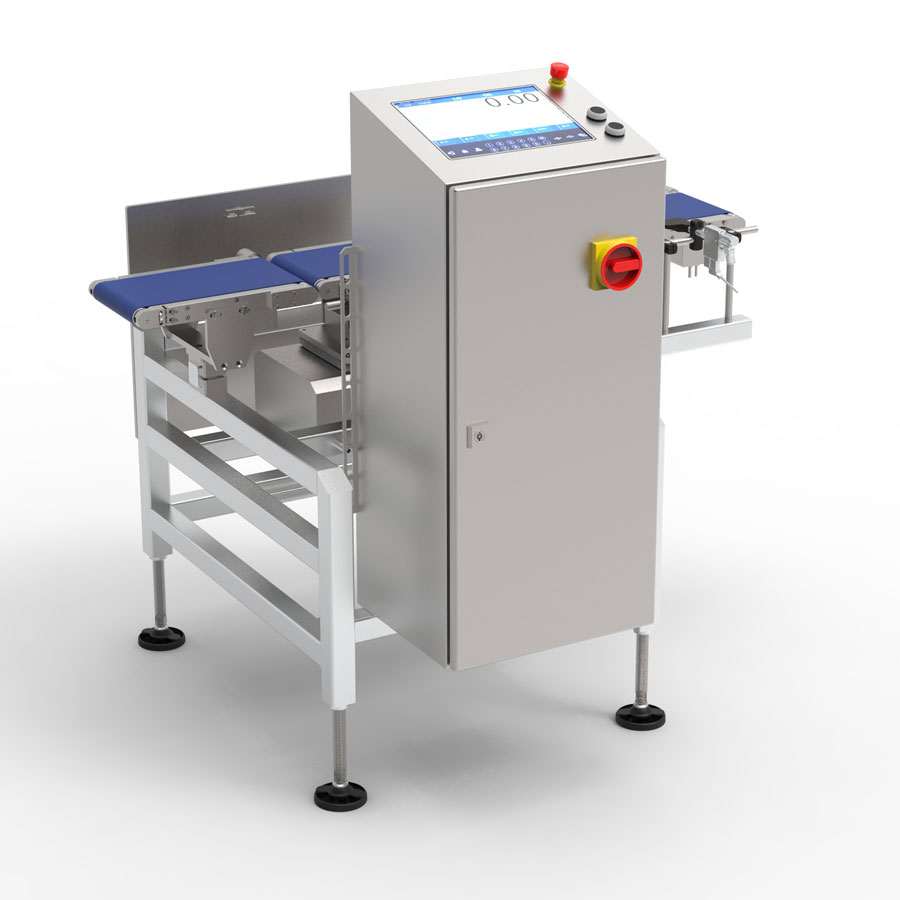

DWM HY10 Basic Checkweigher

The DWM HY10 Basic Checkweigher is a compact device that guarantees 100% inspection of a production batch. It is easy to install and integrate into the production line. A number of ready-made components simplify the scale’s adaptation to the requirements of a specific production line.

Precise Measurement and Easy Operation

The device provides a capacity of up to 150 pcs/min. It guarantees precise measurement, records data to a database, rejects defective products with an integrated rejecter, and prepares a specialized inspection report. Thanks to the 10.1-inch display and user-friendly interface, operation of the scale is easy and comfortable.

Speed, Accuracy and Resistance

The DWM HY10 Basic Checkweigher is equipped with a reliable MWMH series measuring unit – a magnetoelectric system. MWMH guarantees high speed, readability and resistance to mechanical shock. Maintenance-free BLDC type motors were used to drive the scale. The structure and control cabinet are made of stainless steel. The correctness of data recording and storage is supervised by the SQL database system. The large, capacious database makes it possible to register any number of operators and assortments.

What Speaks to the Choice of DWM HY10 Basic Checkweigher?

Main features:

10.1-inch color display
Touch panel
Magnetoelectric measuring module
Brushless motors
Pneumatic discrimination system
SQL database
No limitation of assortment and operator base
Current statistics
Possibility of integration with the line and the customer’s control system.

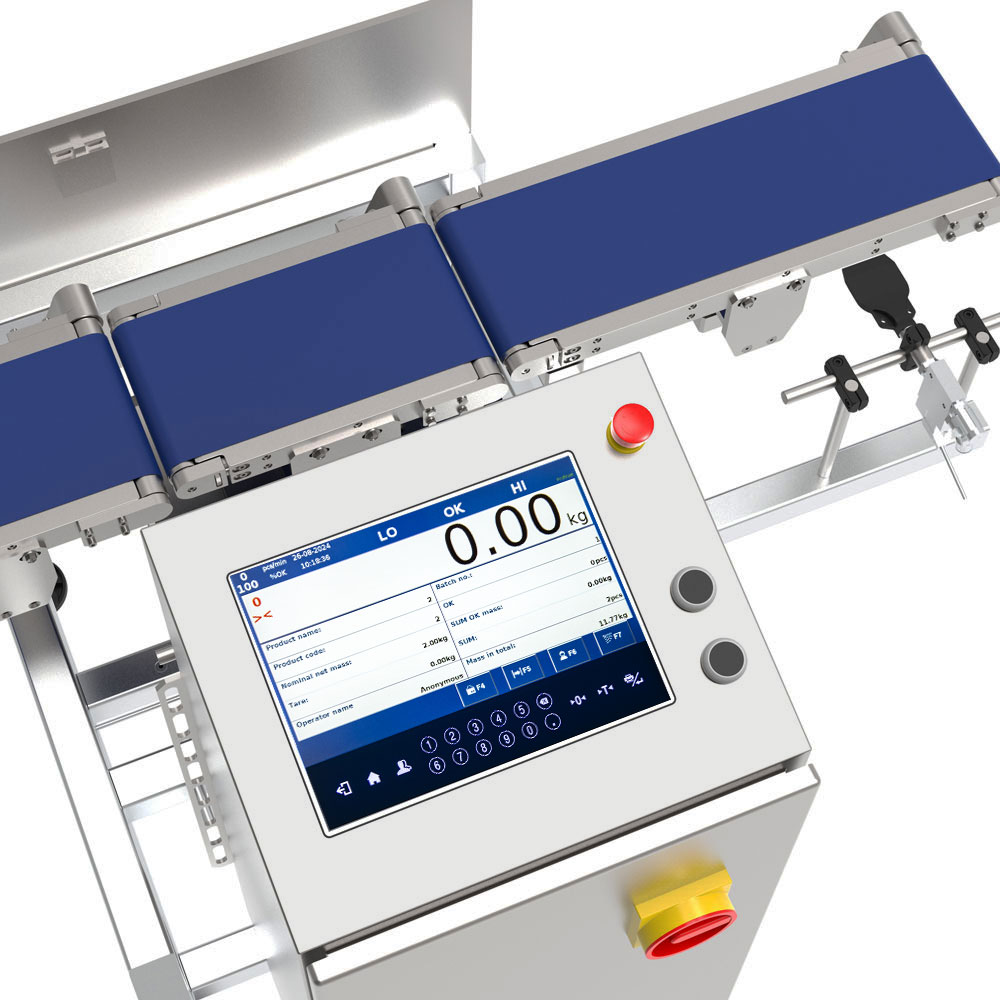

10.1-Inch Color Display with Touch Panel

If you waste your time scrolling up and down the screen several times, a large display will be an ergonomic tool for you. A 10.1-inch display will allow you to see more information at once or even an entire document at once. Our display is not only large, but also color and touch. A color screen means clearer menus, and the touch panel translates into a comfortable work experience.

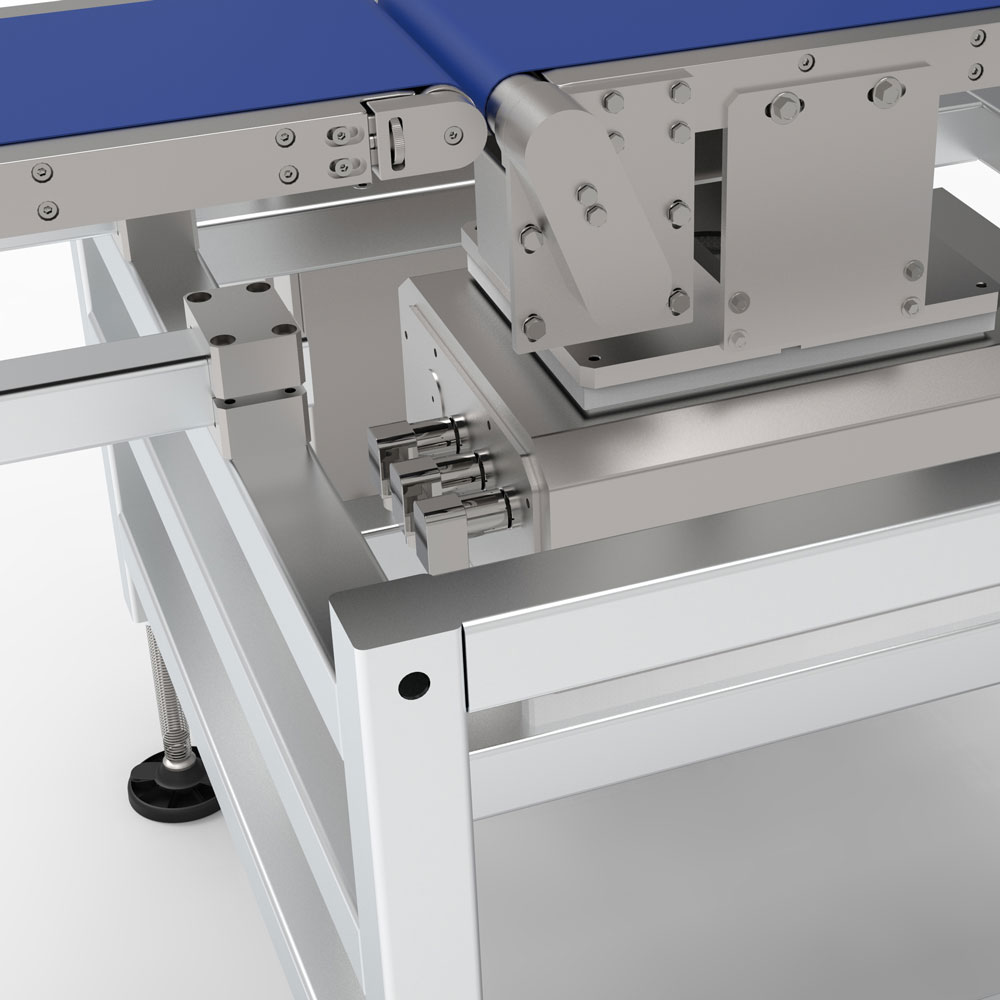

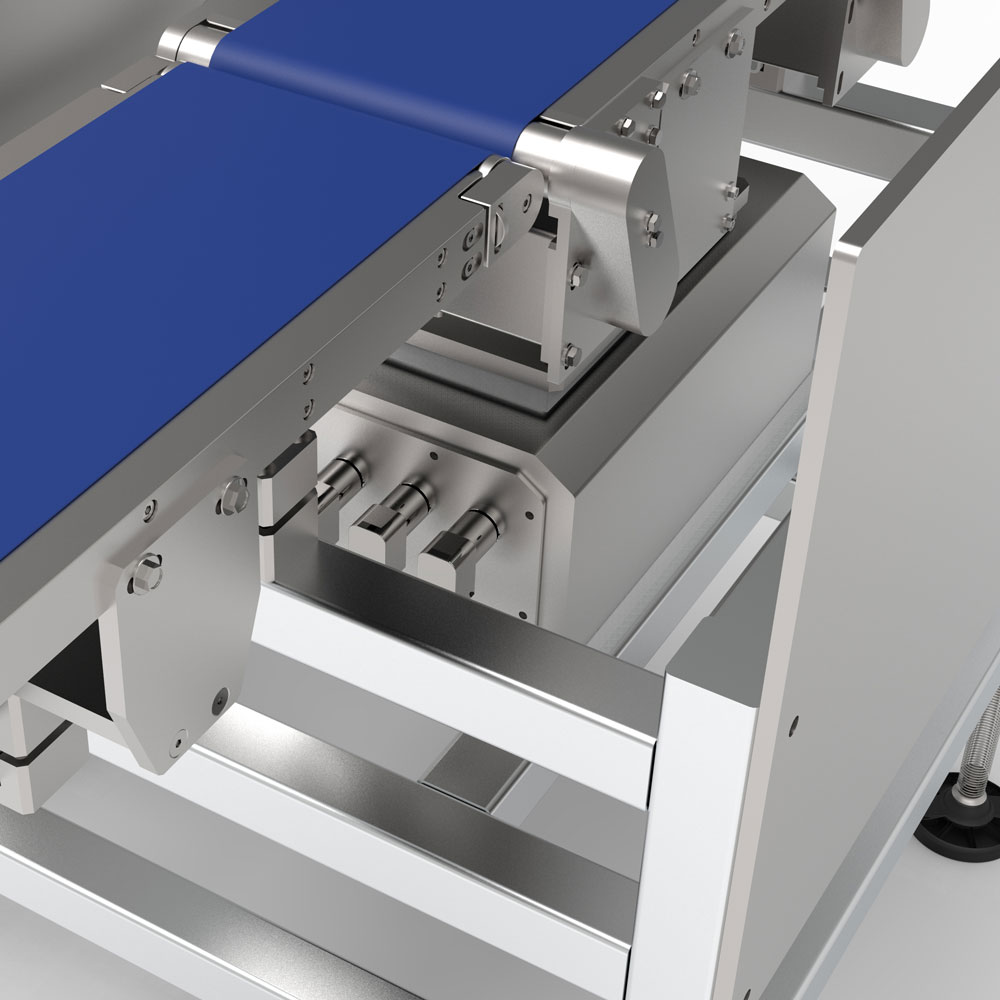

Magnetoelectric Measuring Module: Speed and Readability

The MWMH module enables reading of real results with unprecedented readability and stunning repeatability. The device has been made in accordance with HACCP, GMP and FDA standards for safety and quality of operation. This means that its mechanical design, devoid of sharp edges and narrow gaps, predestines the module to work in the most demanding conditions.

The measurement speed achieved by the MWMH module makes it possible to use it in automated production lines. For fast and dynamic measurement processes, the weighing module’s transducer can operate at a sampling rate of 3200 pom/s.

Brushless Motors: Longer Life and Quieter Operation

The maintenance-free BLDC-type motors we used in the scales have a longer life, higher efficiency and lower failure rate than their brushed counterparts. They are lighter and quieter and allow continuous operation at maximum torque. They have large power ranges and accurate speed control.

Pneumatic Discriminator System: Reliability, Precision and Simplicity

We have equipped the scale with a pneumatic discriminator that rejects defective products. The principle of the pneumatic discriminator system relies on compressed air being released when a defective product is detected. The main advantages of pneumatic systems are considered to be reliability, precision of operation and simplicity.

SQL Database: Seamless Cooperation and Reliable Data

Relational databases (SQL databases) have a number of advantages that make data management easier. First, they allow you to add, delete and modify data in real time without disturbing other users. In addition, SQL databases reduce data redundancy associated with insertions and deletions, and thus allow you to maintain the accuracy and speed of processing a large batch of transactions.

Possibility of Integration with the Line and the Customer’s Control System: We Are Giving You Exactly What You Are Looking for

We have produced a versatile scale that you will use in the optimal way for you and for your individual purposes.

The DWM HY10 Basic Checkweigher is equipped with a range of ready-made components that make it easy to integrate into any production line. Whatever your needs, you will effortlessly adapt our device to the requirements of your production facility.

Check the price in our store

radwaguk.com

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebook – profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

See in store (UK) Radwag Shop

Maximum capacity [Max]	1500 - 6000 g
Readability [d]	0.5 - 2 g
Display	10.1″ graphic colour touchscreen
Operating pressure	6 Bar
Protection class	IP 55
Material	Stainless steel, aluminium anodowane
Communication interface	RS232, Ethernet, RS485
Optional interfaces	Profibus, Profinet, Ethernet IP, Modbus
Power supply	110 - 230 V AC 50 - 60 Hz
Power consumption max.	0.6 kVA
Operating temperature	+10 — +40 °C
Capacity	max 150 pcs/min
Conveyor velocity	max 1 m/s
