WLY 30/F1/K Hassas Terazi

Radwag Balances and Scales - Advanced Weighing Technologies
Selected language Türkiye
WLY 30/F1/K Hassas Terazi içinde Laboratory balances

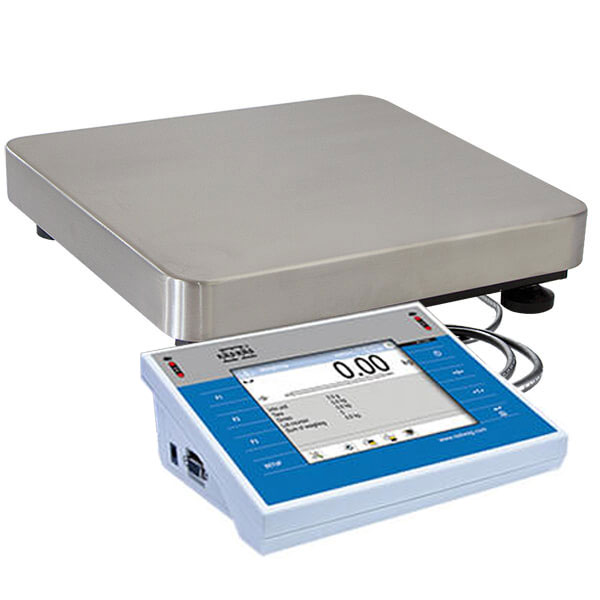

This image is for reference only.
WLY 30/F1/K Hassas Terazi
Ürün kodu: WL-219-0036
Select model (15)
done
Max: 30kgd: 0,5g

 300×300mm
expand_more
Max: 1kgd: 0,01g

 195×195mm
Max: 2kgd: 0,01g

 195×195mm
Max: 6kgd: 0,1g

 300×300mm
Max: 6kgd: 0,1g

 195×195mm
Max: 6kgd: 0,1g

 300×300mm
Max: 10kgd: 0,1g

 195×195mm
Max: 12kgd: 0,2g

 300×300mm
Max: 12kgd: 0,2g

 300×300mm
Max: 20kgd: 0,1g

 195×195mm
Max: 30kgd: 0,5g

 300×300mm
Max: 60kgd: 1g

 400×500mm
Max: 60kgd: 1g

 400×500mm
Max: 120kgd: 2g

 400×500mm
Max: 120kgd: 2g

 400×500mm
Genel Açıklama
UYGULAMA Çok fonksiyonlu WLY terazileri, PUE7 serisi modern terminal uygulaması ile tartılmış malzemenin hızlı ve hassas kütle tayini için tasarlanmıştır. Terazi basit... Daha fazla ››
Maximum capacity [Max]: 30kg
Readability [d]: 0,5g

close
Select model:
WLY 1/D2 Hassas Terazi
WLY 2/D2 Hassas Terazi
WLY 6/F1/K Hassas Terazi
WLY 6/D2 Hassas Terazi
WLY 6/F1/R Hassas Terazi
WLY 10/D2 Hassas Terazi
WLY 12/F1/K Hassas Terazi
WLY 12/F1/R Hassas Terazi
WLY 20/D2 Hassas Terazi
WLY 30/F1/K Hassas Terazi
WLY 30/F1/R Hassas Terazi
WLY 60/C2/R Hassas Terazi
WLY 60/C2/K Hassas Terazi
WLY 120/C2/K Hassas Terazi
WLY 120/C2/R Hassas Terazi
Select all
Bakış
İndirme
Request a quote
Genel Açıklama
UYGULAMA
Çok fonksiyonlu WLY terazileri, PUE7 serisi modern terminal uygulaması ile tartılmış malzemenin hızlı ve hassas kütle tayini için tasarlanmıştır. Terazi basit bir yapıya sahip olup tartım için maksimum otomasyon sağlar. Terazi, standart tartım moduna ilave olarak, parça sayma, etiketleme ve formülasyon yapma özelliklerini sunar. Terminalin çok amaçlı yazılımı, RS232,USB ve Ethernet arabirimleri üzerinden, terazinin barkod tarayıcı, etiket yazıcısı, fiş yazıcısı, RFID tarayıcı ve PC çevre birimleri (fare, klavye ve harici veri depolama cihazları gibi) ile birlikte çalışmasını sağlar.

TASARIM VE İŞLEVSELLİK
WLY terazileri paslanmaz çelik tartı platformuna ve renkli, dokunmatik 5.7” TFT ekranlı ve membran tuş takımlı bir terminale sahiptir. Sistem, ilave bir tartı platformu bağlanabilecek şekilde olup aşağıdaki fonksiyonları sunar:
  • Displayin ve fonksiyon tuşlarının programlanması,
  • İnfrared yaklaşım sensörlerinin programlanması,
  • Çıktıların tasarımı,
  • İndikatör ekranında gösterilen metin verilerin tasarımı
YAZILIM FONKSİYONLARI
  • Mevcut çalışma modları: tartma, parça sayma, yüzde ayarı, formülasyon, yoğunluk tayini, hayvan tartımı;
  • Tek malları eşleştirmek için standart etiketler üretmek
  • Kümülatif konteynırları eşleştirmek için C etiketler üretmek
  • Konteynırları kümülatif konteynırlar ile eşleştirmek için CC etiketler üretmek
  • C ve CC etiket çıktılarını başlatmak için 3 yöntem
    • Manuel
    • Sayaç durumu (değeri) ile
    • Ürünün kütle değerinin girilmesi ile
  • Kontrol terazi modu ( Ölçülen değerin +/- kontrolü)
  • EAN-13 ve EAN-128 kodlarını kullanarak ürün tespiti
  • Operatör, ürün, ham madde, müşteri, tartım kaydı, genel değişkenler ve dara veri tabanına erişme.
WLY terazileri, bağlı olan bir barkod tarayıcı ile ürünün hızlı bir şekilde aranmasını sağlar. Bu seçenek sistemin fonksiyonelliğini önemli bir oranda arttırır.
Terminal “LABEL EDITOR” bilgisayar yazılımı ile birlikte çalışabilir ve yazılım RS232 veya Ethernet üzerinden terazi ile haberleşebilir.
WLY serisinin, ilave ücret karşılığında çift kademeli (doğrulanmamış) versiyonu mevcuttur.
Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products:
Stainless Steel in RADWAG products. Standard and special applications
Teknik Veriler
Maximum capacity [Max]

30

 kg

Minimum load

-

 g

Readability [d]

0,5

 g

Dara aralığı

-30

 kg

Verification scale interval [e]

-



Repeatability

1

 g

Doğrusallık

±1

 g

Kararlılık süresi

3

 s

Ayarlama

external



OIML Class

-



Levelling system

manual



Weighing pan dimensions

300×300

 mm

Packaging dimensions

570×390×170

 mm

Net weight

5,2

 kg

Brüt ağırlık

6

 kg

IP Sınıfı

IP 43



Haberleşme arayüzü

2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®



Güç kaynağı

100 — 240 V AC 50/60 Hz



Çalıştırma sıcaklığı

+15 — +30

 °C

Depolama sıcaklığı

-25 - +70

 °C

Atmosferik nem

10% — 85% RH no condensation



Özellikler
Data exchange through
USB storage devices

Data exchange through
USB storage devices

  • update balance software
  • export weighing data
  • export/import databases
  • export/import balance settings
  • exchange data between balances
Infrared
proximity sensors

Infrared
proximity sensors

Optional functions:
  • PRINT function
  • TARE function
  • sensor's sensitivity adjustment
Modes

Modes

Standard scale has built in modes of "Parts counting" and "Checkweighing".
Interfaces

Interfaces

  • Ethernet
  • 2×USB
  • 2×RS 232
  • 4 in / 4 out
  • WiFi 2,4GHz b,g,n
Fonksiyonlar
Dosing

Dosing

Weighing process for which reference mass has been determined together with tolerance for its determination. Dosing tolerance is given in [%] and it is calculated in relation to the reference value thus being a permissible deviation of this process. This solution is used for weighing powders, liquids and loose materials. Dosing function performance is often supported with bargraph - load indicator. For industrial scales it is possible to use a control systems of dosing process.
Labelling

Labelling

Marking products with the right symbols contributes to quick and reliable identification. The balance/scale usually transfers product mass or product quantity to the label printer. The transferred value is printed with the following information: bar code, pictogram, content, address etc. In laboratory the labelling is performed in a semi-automatic mode, for industry in an automatic one (dynamic scales).
Plus/Minus Control

Plus/Minus Control

Control of sample's mass carried out with reference to specified MIN and MAX thresholds. The weight is considered to be correct if it is comprised within threshold values. A graphic visualisation of weighing result is displayed in a form of a bar graph.
Percent Weighing

Percent Weighing

Percent Weighing function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly  exceeded.
Totalizing

Totalizing

Function adding new mass value to already obtained one. This allows to determine mass content of the mixture, being a composition of number of different consistence components. Totalizing is limited by maximum capacity parameter.
Parts counting

Parts counting

Function using mass measurement for determination of  measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.
Peak hold

Peak hold

Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
Formulation

Formulation

Function supporting the mixture making process, wherein the mixture contains various components. Formulation function usually uses the balance/scale database of components. Formulation serves for monitored checkweighing of every single component with a given tolerance. It is enriched with a set of individual settings.
Statistics

Statistics

Statistiscs function registers and analyses performed measurements. This supplies the user withthe following information: Max and Min standard deviation, average value, variance, range et.
Checkweighing

Checkweighing

Checkweighing function is used for checking whether the measured sample mass is within the predefined threshold values, Low [LO] and Hgh [HI]. The thresholds are given in [g] and [kg] units. Current state of a sample being measured is signalled by means of pictorgams located on a display for laboratory balances, for industrial scales Stackligt System is used. This visual +/- inspection is in operation during segregation, control or packing process of products for which mass has bees determined with a specifaied tolerance, eg. 12860 g 961
IR sensors

IR sensors

Programmable function supporting the weighing process through control of the following options: sliding weighing chamber doors, printout, zeroing, tarring etc. Especially appreciated wherever preventing the balance from soiling is important.
Animal weighing

Animal weighing

Process of mass determination for a product which may unwillingly reposition within the weighing pan. Mass determination in such cases requires much longer period of time when compared to typical weighing process. It is the user who defines period of time needed for control of measured product mass. The user can thus optimize the function depending on the measured product characteristics.
Differential weighing

Differential weighing

Differential weighing informs about mass variation a particular sample, wherein the said variation is a result of manufacturing processes.

Differential weighing is often applied in product control process, for which reference product parameters have been specified in order to be used as a source of comparison for the whole series.
Insuchcasestandard deviation is the information which tells about quality and completeness of a final product. For systems based on a feed-back technique such information may be used by control units.
ALIBI Memory

ALIBI Memory

"ALIBI" memory enables saving and storing up to 100000 measurements.  Measurements are saved automatically upon each pressing of the key. There is no need for any additional operations or changing settings.
The following data related with the measurements is saved: measurement date; measurement time; result (mass); tare value; operator carrying out the measurement (logged in); product name.
The software saves the measurement in a so called loop, i.e. when the measurement no. 100001 is saved, the measurement 1 gets automatically deleted from the memory.
Measurements saved to balance memory cannot be deleted.
You can preview and print out the data saved to the ALIBI database.
