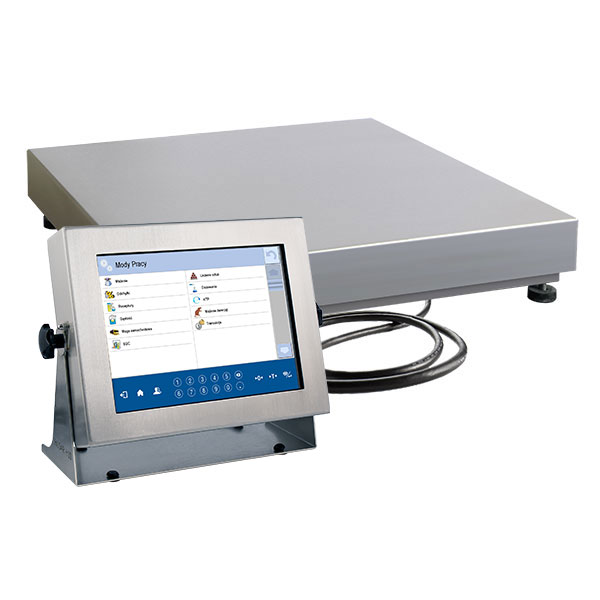

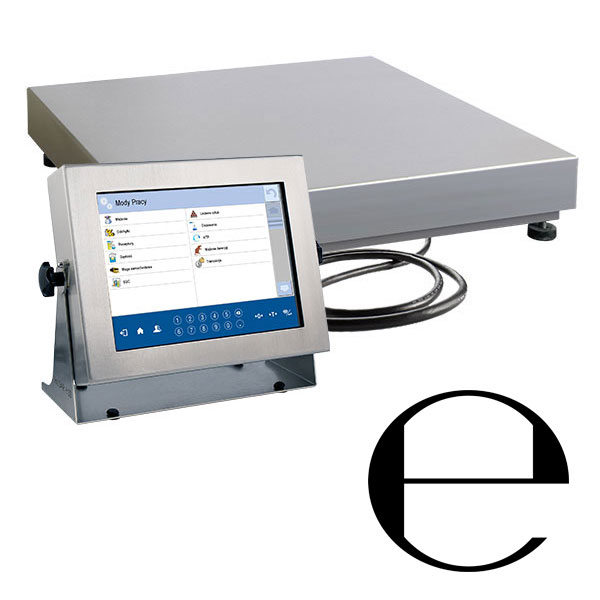

HY10.3/6.H2.PUK Çok Fonksiyonlu Terazi
This image is for reference only.

HY10.3/6.H2.PUK Çok Fonksiyonlu Terazi

Ürün kodu: WK-311-1006
Modeli değiştirin (7)
done
HY10.3/6.H2.PUK Çok Fonksiyonlu Terazi
Max: 3 / 6kgd: 1 / 2g

⤢

 250×300mm
expand_more
HY10.1,5/3.H1.PUK Çok Foknsiyonlu Terazi
Max: 1,5 / 3kgd: 0,5 / 1g

⤢

 150×200mm
HY10.3/6.H1.PUK Çok Fonksiyonlu Terazi
Max: 3 / 6kgd: 1 / 2g

⤢

 150×200mm
HY10.6/15.H2.PUK Çok Fonksiyonlu Terazi
Max: 6 / 15kgd: 2 / 5g

⤢

 250×300mm
HY10.6/15.H3.PUK Bilance multifunzione
Max: 6 / 15kgd: 2 / 5g

⤢

 410×410mm
HY10.15/30.H3.PUK Çok Fonksiyonlu Terazi
Max: 15 / 30kgd: 5 / 10g

⤢

 410×410mm
HY10.30/60.H3.PUK Çok Fonksiyonlu Terazi
Max: 30 / 60kgd: 10 / 20g

⤢

 410×410mm
Maksimum yük [Max]: 3 / 6 kg
Okuma doğruluğu [d]: 1 / 2 g

close
Modelleri seç:
✓ HY10.1,5/3.H1.PUK Çok Foknsiyonlu Terazi
✓ HY10.3/6.H1.PUK Çok Fonksiyonlu Terazi
✓ HY10.3/6.H2.PUK Çok Fonksiyonlu Terazi
✓ HY10.6/15.H2.PUK Çok Fonksiyonlu Terazi
✓ HY10.6/15.H3.PUK Bilance multifunzione
✓ HY10.15/30.H3.PUK Çok Fonksiyonlu Terazi
✓ HY10.30/60.H3.PUK Çok Fonksiyonlu Terazi
✓ Select all
Bakış
İndirme
Request a quote
Genel Açıklama


Paketlenmiş ürün kontrol HY10.H terazisi


HY10.PGC serisi teraziler, paketlenmiş ürünlerin kontrolü için modül ile donatılmıştır. Modül, ürün ve operatör listelerini içeren veri tabanı tarafından desteklenmektedir. Önceden tanımlanmış paket sayısı (numuneler) kontrol edildikten sonra terazinin başlattığı kontrol otomatik olarak durdurulur. Paketlerin sayısı, ürün parti büyüklüğüne bağlı olarak terazi programı ile sabitlenir. Teraziler, tartımlara ve kontrol parametrelerinin ayarlanmasına kolaylık sağlayan, 10,1" renkli, grafik dokunmatik ekran ve tam alfa nümerik klavyeye sahiptir.




Kontrol döngüsü aşağıdaki şemaya göre çalışır:

  • Operatör seçimi,
  • Ürün seçimi,
  • Kontrolü başlatma,
  • Tartım kayıtlarını alma,
  • Belirli paket miktarından sonra kontrolü otomatik bitirme,
  • Kontrol raporu yazdırma.
Yapılan her kontrol, hazır ambalajlı ürün kontrol raporu için gerekli olan tüm bilgileri içeren bir nihai rapor ile sona erer. Rapor otomatik olarak terazi hafızasına kaydedilir ve aynı zamanda terazilere bağlı yazıcı tarafından basılabilir.
Paketlenmiş ürünlerin kontrolü için tek bir stant versiyonu olarak HY10.PGC serisi, "ViewerPGC" bilgisayar uygulaması tarafından desteklenmektedir. Ürünlerin kontrol raporlarının ve paketlerin daralarının, tamamlanmış kontrollerden izlenmesi ve / veya yazdırılması için kullanılır. Raporlar bilgisayara bağlı bir yazıcıda yazdırılır.



Kantarın amacı önceden paketlenmiş ürünleri (PGC) kontrol etmektir, bu nedenle yasallaştırmanın gerekli olduğunu unutmayın.
Uygun yasallaştırmaya sahip bir terazi sipariş etmenizi öneririz.


Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products:
Stainless Steel in RADWAG products. Standard and special applications
Teknik Veriler
Maksimum yük [Max]

3 / 6

kg

Minimum yük [Min]

20 / 40

g

Okuma içinğruluğu [d]

1 / 2

g

Yasallaştırma birimi [e]

1 / 2

g

Dara aralığı

-6

kg

OIML sınıfı

III

Display

10,1″ grafik renkli dokunmatik

Kablo uzunluğu

1,5

m

Tartım kefesi boyutları

250×300

mm

Ambalaj boyutları G x D x Y

350×560×500

mm

Net ağırlık

10,52

kg

Brüt ağırlık

12,25

kg

IP Sınıfı

IP 66 / 67 konstrüksiyon, IP 66 / 67 / 69 terminal

Haberleşme arayüzü

2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (dijital)

Opsiyonel arayüzler

modül Wi-Fi® 802.11 b/g/n, modül Profibus (DP SLAVE), modül RS485, modül PROFINET (RJ45), analog çıkış modülü (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0,5 ADC)

Güç kaynağı

100 – 240 V AC 50/60 Hz

Çalıştırma sıcaklığı

-10 – +40

°C

Atmosferik nem

10% – 85% RH yoğunlaşma yok

CE
2 yıl garanti
Automatic Scales verification
Packaged Goods Control
Videolar
Complete Solutions for Mass Measurement in Pharma Industry
HY10 Advanced weighing terminal
RADWAG Remote Desktop
RADWAG Remote Desktop - Windows 10
Fonksiyonlar
Dosing

Dosing

Weighing process for which reference mass has been determined together with tolerance for its determination. Dosing tolerance is given in [%] and it is calculated in relation to the reference value thus being a permissible deviation of this process. This solution is used for weighing powders, liquids and loose materials. Dosing function performance is often supported with bargraph - load indicator. For industrial scales it is possible to use a control systems of dosing process.
Labelling

Labelling

Marking products with the right symbols contributes to quick and reliable identification. The balance/scale usually transfers product mass or product quantity to the label printer. The transferred value is printed with the following information: bar code, pictogram, content, address etc. In laboratory the labelling is performed in a semi-automatic mode, for industry in an automatic one (dynamic scales).
Plus/Minus Control

Plus/Minus Control

Control of sample's mass carried out with reference to specified MIN and MAX thresholds. The weight is considered to be correct if it is comprised within threshold values. A graphic visualisation of weighing result is displayed in a form of a bar graph.
Percent Weighing

Percent Weighing

Percent Weighing function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly  exceeded.
Totalizing

Totalizing

Function adding new mass value to already obtained one. This allows to determine mass content of the mixture, being a composition of number of different consistence components. Totalizing is limited by maximum capacity parameter.
Parts counting

Parts counting

Function using mass measurement for determination of  measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.
Peak hold

Peak hold

Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
Formulation

Formulation

Function supporting the mixture making process, wherein the mixture contains various components. Formulation function usually uses the balance/scale database of components. Formulation serves for monitored checkweighing of every single component with a given tolerance. It is enriched with a set of individual settings.
Statistics

Statistics

Statistiscs function registers and analyses performed measurements. This supplies the user withthe following information: Max and Min standard deviation, average value, variance, range et.
Checkweighing

Checkweighing

Checkweighing function is used for checking whether the measured sample mass is within the predefined threshold values, Low [LO] and Hgh [HI]. The thresholds are given in [g] and [kg] units. Current state of a sample being measured is signalled by means of pictorgams located on a display for laboratory balances, for industrial scales Stackligt System is used. This visual +/- inspection is in operation during segregation, control or packing process of products for which mass has bees determined with a specifaied tolerance, eg. 12860 g ± 5 g
GLP Procedures

GLP Procedures

Diagnostic function allowing to objectively document performed measurements. GLP procedures may be either presented in a short report form or extended one.
Animal weighing

Animal weighing

Process of mass determination for a product which may unwillingly reposition within the weighing pan. Mass determination in such cases requires much longer period of time when compared to typical weighing process. It is the user who defines period of time needed for control of measured product mass. The user can thus optimize the function depending on the measured product characteristics.
Differential weighing

Differential weighing

Differential weighing informs about mass variation a particular sample, wherein the said variation is a result of manufacturing processes.

Differential weighing is often applied in product control process, for which reference product parameters have been specified in order to be used as a source of comparison for the whole series.
Insuchcasestandard deviation is the information which tells about quality and completeness of a final product. For systems based on a feed-back technique such information may be used by control units.
Replaceable unit

Replaceable unit

Weight function to change the weight unit.
Statistical Quality Control

Statistical Quality Control

Statistical control for determination of basic statistical criteria: maximum, minimum, standard deviation, mean values for each batch, etc.
Packaged Goods Control

Packaged Goods Control

Pre-packaged Goods Control mode enables to collect weighings from RADWAG-designed weighing instruments, carry out control and generate PGC reports. Different types of weighing instruments can be combined into a network. The control can be started on a balance or via computer software. It is automatically finished after a respective quantity of packages is verified.
Collected data allows you to assess quality of produced pre-packaged goods and their conformity with:
- internal quality control system;
- 'Pre-Packaged Goods' regulation of 7th May 2009 (Journal of Laws No 91, item 740), on the requirements concerning quantity inspection of pre-packaged goods control, which inspection is to be carried out by means of random selection of the measurements results and sending those results to pre-packaged goods control procedure.
ALIBI Memory

ALIBI Memory

"ALIBI" memory enables saving and storing up to 100000 measurements.  Measurements are saved automatically upon each pressing of the key. There is no need for any additional operations or changing settings.
The following data related with the measurements is saved: measurement date; measurement time; result (mass); tare value; operator carrying out the measurement (logged in); product name.
The software saves the measurement in a so called loop, i.e. when the measurement no. 100001 is saved, the measurement 1 gets automatically deleted from the memory.
Measurements saved to balance memory cannot be deleted.
You can preview and print out the data saved to the ALIBI database.
Transactions

Transactions

Complex weighing mode for registration of weighings that are part of transactions such as sale, purchase and warehouse transfer. You can create a new transaction using the scale. It is possible to pause the transaction or abort it.  The function supports warehouse management in an enterprise.
